Smart Hydrostatic Pressure Transmitters Safir 2xxx K

Functionally, the smart hydrostatic pressure transmitters Safir 2xxx K can be performed for both open and closed tanks with side flange welded. Submersible pressure transmitters can have a special design in the form of one- (two-, three-) sensor transmitters for measuring the liquid level in open tanks.

Being an upgrade of the Safir 2xxx F pressure transmitters, it has a more advanced smart electronic module.

Additional information

Pressure type	hydrostatic
Transmitter type	smart
Measuring range	0 … 1 kPa to 0 … 400 kPa, 0 … 100 mm wg to 0 … 40 m wg
Turndown	1:100
Output signal	0-5 mA, 4-20 mA, HART
Accuracy	0.04 % FS
Materials of wetted parts	Hastelloy, stainless steel 12X18H10T
Indicator	dot-matrix display
Control	push-button on menu or remote via HART protocol

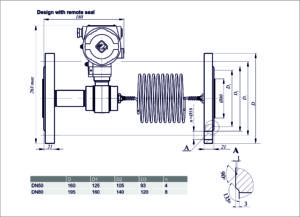

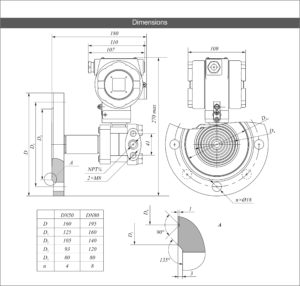

Nominal diameter	DN50, DN65, DN80
Immersion-probe-length	1…3 m (hard), 1.6 … 25 m (flexible)

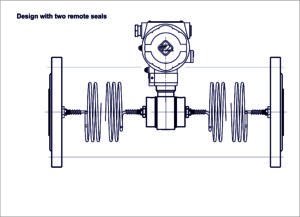

Design options	remote flanges, stainless steel housing, user’s measuring unit
Industry	Nuclear power
Certification / qualification	Nuclear Grade, ATEX, IP66/67, seismic and radiographic qualifications
